1-179553-3
Manufacturer:
TE Connectivity
Mfr.Part #:
1-179553-3
Datasheet:
Description:

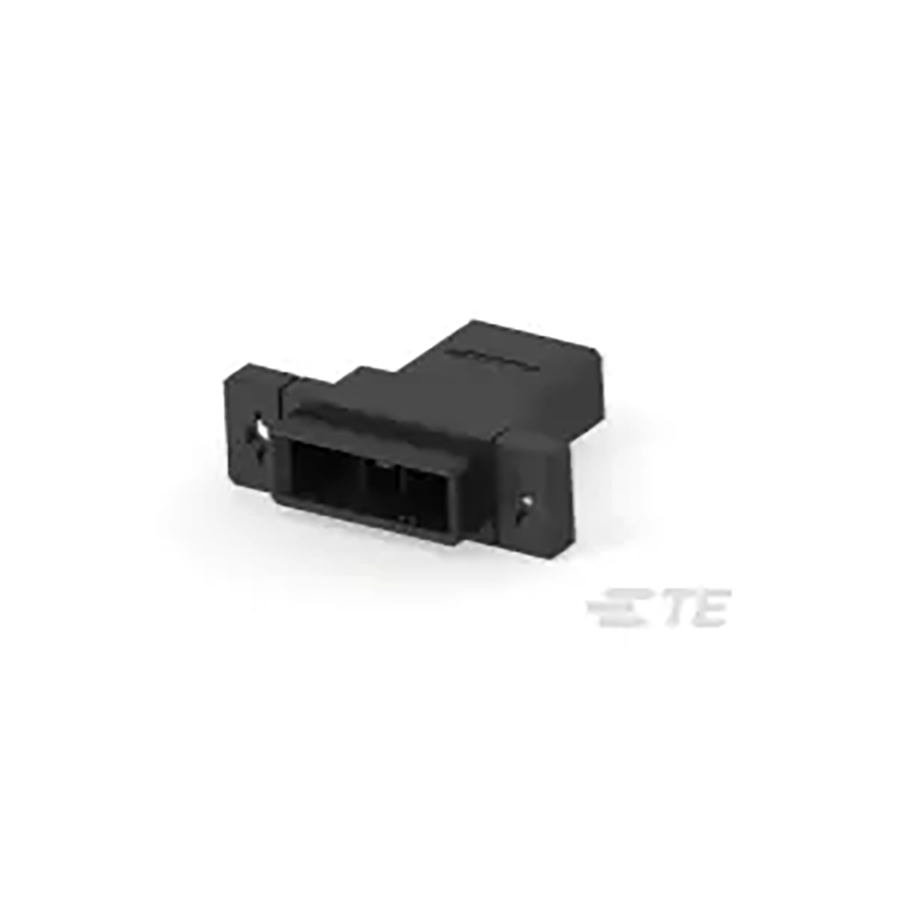

Headers and Wire Housings Panel Plug, Tab Number of Positions:3 Pitch:5.08 mm
| Parameter | Value |
|---|---|
| Length | 41.91 mm |
| Width | 12.6746 mm |
| Termination | Crimp |
| Max Operating Temperature | 105 °C |
| Min Operating Temperature | -55 °C |
| Height | 33.6 mm |
| Packaging | Bulk |
| Voltage Rating | 600 V |
| Depth | 33.6 mm |
| Halogen Free | Halogen Free |
| Radiation Hardening | No |
| RoHS | Compliant |
| REACH SVHC | No SVHC |
| Pitch | 5.08 mm |
| Flammability Rating | UL94 V-0 |
| Approvals | UL |
| Orientation | Straight |
| Operating Supply Voltage | 600 V |
| Lifecycle Status | Production (Last Updated: 2 weeks ago) |
| Color | Black |
| Gender | Pin (Male) |
| Number of Contacts | 3 |
| ELV | Compliant |
| Body Material | Glass, PET, Polyester |
| Connector Type | Plug, Tab |
| Wire/Cable Gauge | 16 AWG |
| Number of Positions | 3 |
| Number of Rows | 1 |
| Housing Material | Polyester |
| Max Voltage Rating (AC) | 600 V |
| Housing Color | Black |
| VDE Tested | No |
| Preloaded | No |
| Schedule B | 8536695050 |
| Manufacturer Lifecycle Status | ACTIVE (Last Updated: 2 weeks ago) |
| Sealable | No |
Stock: 141
Distributors
pcbx
pcbxUnit Price$0.69648
Ext.Price$0.69648
| Qty | Unit Price | Ext.Price |
|---|---|---|
| 1 | $0.69648 | $0.69648 |
| 10 | $0.57245 | $5.72450 |
| 25 | $0.53725 | $13.43125 |
| 50 | $0.50421 | $25.21050 |
| 100 | $0.47321 | $47.32100 |
| 300 | $0.44411 | $133.23300 |
| 500 | $0.41681 | $208.40500 |
| 1000 | $0.39722 | $397.22000 |
| 3000 | $0.39367 | $1181.01000 |
